Hytera AN0168H05 VHF Stubby Antenna (163-174 MHz) | Genuine Hytera

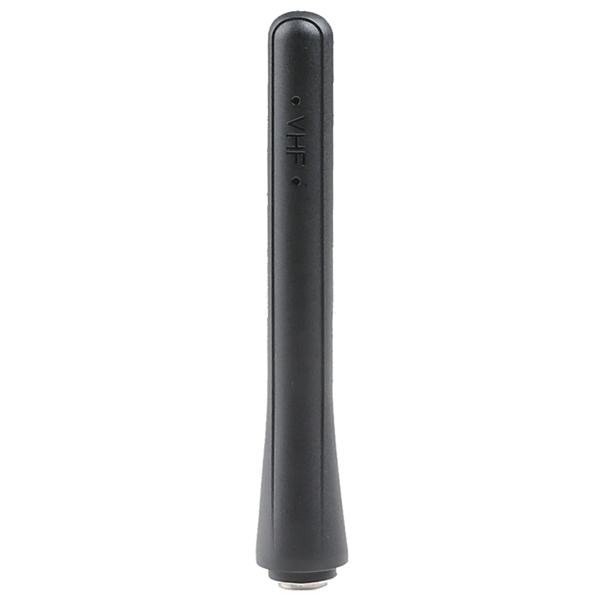

Hytera AN0168H05 VHF Stubby Antenna

The Hytera AN0168H05 is a premium, high-band VHF stubby antenna engineered specifically for the upper end of the VHF spectrum, spanning 163 to 174 MHz. Standing at an ultra-compact 3.5 inches (9cm) tall, this antenna is intended for users operating on high-band maritime, federal, or corporate VHF allocations who want to downsize their portable equipment footprint.

Even inside its short, heavy-duty housing, the AN0168H05 features a built-in 1575 MHz GPS component, offering seamless compatibility with advanced telemetry, geo-tracking, and lone-worker monitoring systems common in high-tier commercial environments.

Key Features

• High-Band VHF Optimization (163–174 MHz): Tuned for maximum transmission gain and clean reception at the higher limits of commercial VHF frequencies.
• Ergonomic 9cm Stubby Profile: Compact form factor prevents the radio from catching on surrounding machinery, seat belts, or loose clothing during movement.
• Internal GPS Module: Full 1575 MHz satellite coverage enables your automated location and worker tracking networks to remain fully active.
• Durable SMA-Male Connector: Threaded connection establishes a tight, solid mechanical and electrical bond that blocks out industrial contaminants.
• Authentic Factory Construction: Manufactured by Hytera to exact electronic tolerances, preventing the power losses associated with generic components.

Typical Applications

• Maritime Logistics & Coastal Port Facilities
• Federal & Corporate Forestry Services
• Industrial Chemical Plants & Manufacturing Lines
• High-Security Commercial and Residential Complexes

What’s Included

• Hytera AN0168H05 VHF Stubby Antenna

Radio Compatibility

• Hytera HP702 Digital Two-Way Radio
• Hytera HP782 Digital Two-Way Radio
• Hytera HP702 UL913 Intrinsically Safe Radio
• Hytera HP782 UL913 Intrinsically Safe Radio

Why Choose the AN0168H05?

When operating on specialized high-band channels, general wide-band antennas can distribute power inefficiently. The AN0168H05 concentrates RF energy into the exact channel block you utilize, optimizing portable performance while delivering a highly manageable size.

Backed by Hytera’s robust engineering and supported locally by Professional Wireless Communications (PWC) in Burnsville, MN, you receive verified genuine products, rapid fulfillment, and local technical assistance whenever your communications need tuning.
